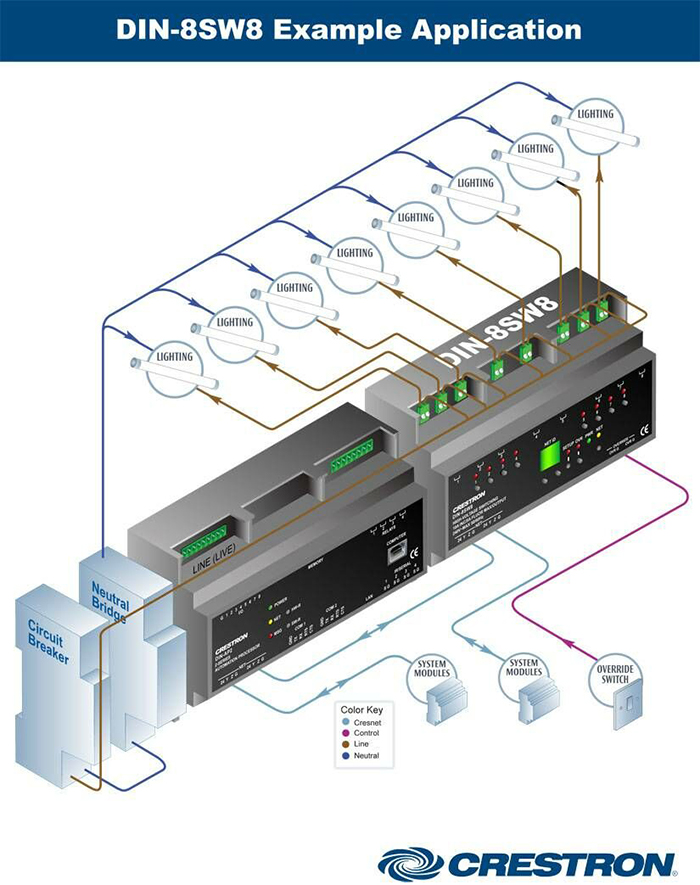

The DIN-8SW8 is an 8-channel lighting control module designed to
support switching of non-dimmable lighting and fans. A single model
supports both 120 and 220-240 Volt applications. Each channel handles
incandescent loads up to 10 Amps, fluorescent loads up to 5 Amps, and
also 1/2 HP motors.*
Override Input
An override input is provided to allow an external contact closure to
momentarily override the control system program and set each channel
output to its override preset state. States can be set and saved
locally from the front panel, or remotely via software.
DIN Rail Installation
The DIN-8SW8 is designed to snap onto a standard DIN rail for
installation in a wall mount enclosure. Wiring connections are made
using screw terminals positioned along the top and bottom, clearly
accessible from the front for easy installation and servicing. All
setup controls and indicators are positioned on the center front
panel. When installed in an enclosure utilizing 45 mm cutouts, the
DIN-8SW8's front panel stays accessible while the connections are
concealed.
Cresnet®

The DIN-8SW8 communicates with a DIN-AP2 2-Series Automation
Processor, or other Crestron 2-Series control system, via the Cresnet
control network. A pair of Cresnet ports is provided on the DIN-8SW8
allowing for easy daisy-chaining of several DIN Rail Series automation
control modules.
> 8 channels of power switching
> Supports 120 to 240 Volt 50/60 Hz
> Override input
> Cresnet communications
> Setup via front panel or software
> Programmable functionality via DIN-AP2
> 9M wide DIN rail mounting
SPECIFICATIONS
Load Ratings
Switch Channels: 8
Maximum Per Channel: 10 Amps incandescent, 5 Amps fluorescent, 0.5 HP @
120 to 240 Volts AC, 50/60 Hz;
5 Amps @ 30 Volts DC;
16 Amps Resistive
Module Total: 80 Amps incandescent, 40 Amps fluorescent @ 120 to 240 Volts
AC, 50/60 Hz
Load Types*: Incandescent, Magnetic Low-voltage, Electronic Low-Voltage,
Neon/Cold Cathode, Fluorescent, Motors
Connections
1 - 8: (8) sets of (2) captive screw terminals;
Isolated Class 1 SPST relay switch circuits 1 - 8;
Relay Rating: 10 Amps incandescent, 5 Amps fluorescent, 16 Amps resistive, 0.5
HP @ 240 Volts AC (per channel);

NET: (2) 4-pin 3.5mm detachable terminal blocks, paralleled;
Cresnet slave port
OVERRIDE: (2) 2-pin 3.5mm detachable terminal blocks, paralleled;
Sensing input for external low-voltage contact closure;
Activates override mode when a closure is present;
Minimum Closure Rating: 10mA (per module) at 24 Volts
Controls & Indicators
1 - 8 : (8) Red LEDs and (8) miniature pushbuttons for status indication and
local control of each channel
NET ID: (2) 7-Segment green LED digits and (2) miniature pushbuttons for
setting Cresnet ID
SETUP: (1) Red LED and (1) recessed miniature pushbutton for enabling
setup mode and touch-settable ID
OVR: (1) Red LED and (1) miniature pushbutton for enabling override mode
and saving override presets
PWR: (1) Green LED, illuminates when DC power is applied to the NET port
NET: (1) Yellow LED, indicates communication with the control processor
RESET: (1) Recessed miniature pushbutton, resets internal processor
Enclosure
Light gray polycarbonate housing with polycarbonate label overlay, UL94 V-0
rated, 35mm DIN EN 60715 rail mount, DIN 43880 form factor for
enclosures with 45mm front panel cutout, occupies 9 DIN module spaces
(162mm)
Power Requirements
Cresnet Power Usage: 5.4 Watts (0.23 Amps @ 24 Volts DC)
Environmental
Temperature: 32° to 104°F (0° to 40°C)
Humidity: 10% to 90% RH (non-condensing)
Heat Dissipation: 18 BTU/hr

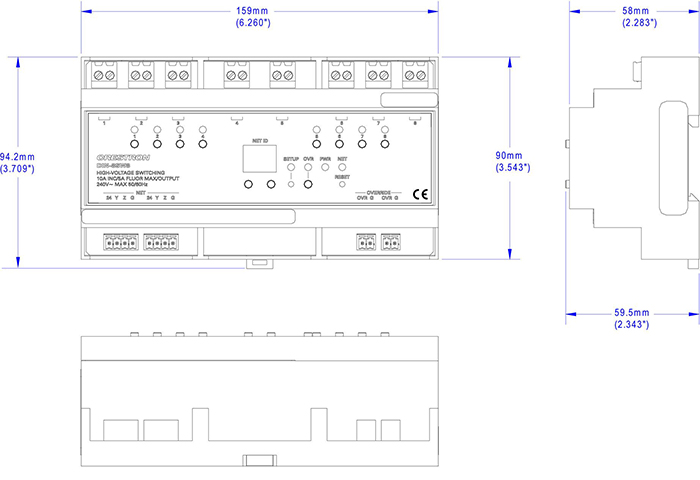

Dimensions
Height: 3.71 in (9.42 cm)
Width: 6.26 in (15.90 cm)
Depth: 2.35 in (5.95 cm)
Weight
13.1 oz (369 g)
* May not be compatible with some high inrush current loads.
Available Models
DIN-8SW8 [6501746]: DIN Rail High-Voltage Switch, 8 feeds, 8 channels
